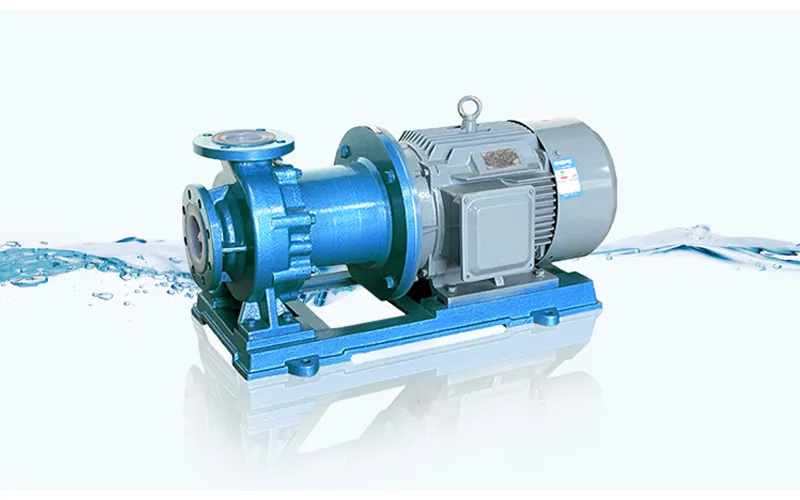

VMF fluorine plastic chemical magnetic pump

The Vast Fortune VMF fluoroplastic magnetic pump is an upgraded model designed for superior chemical resistance and reliability. It is an enhanced alternative to traditional fluoroplastic magnetic pumps, offering improved performance for demanding industrial applications.
  • Item No.: VMF-0001
  • Lead Time: Customer date
  • Shipping Port: Shanghai China
  • Payment: L/C or T/T
  • Color: Customer color
  • Lining Plastic: PTFE / FEP / PVDF / PFA
  • Use: H2SO4 / HCL / HNO3 / NaOH / HF / CH3COOH
Contact Now
Download

The Vast Fortune VMF fluoroplastic magnetic pump is engineered for handling highly corrosive and aggressive chemicals. Its fluoroplastic-lined construction ensures exceptional durability, making it ideal for transferring:

  • Acids (sulfuric, hydrochloric, nitric, acetic, etc.)
  • Alkalis (caustic soda, etc.)
  • Salts & organic solvents
  • High-purity or hazardous liquids

Key Features:

  • Leak-proof magnetic drive technology – Zero risk of fluid leakage
  • Wide temperature range (–20°C to 150°C)
  • Corrosion-resistant fluoroplastic materials (PTFE, FEP, PVDF, PFA)
  • Customizable configurations for different industrial needs

Main Technical Parameters:

  • Flow Rate: 1.6 m³/h – 200 m³/h (1,600 L/h – 200,000 L/h)
  • Head: 5 m – 80 m (0.5 bar – 8 bar)
  • Power: 1.5 kW – 55 kW (2 HP – 75 HP)
  • Suitable Media: Acids, alkalis, salts, organic solvents (any concentration)
  • Operating Temperature: –20°C to 150°C
  • Max Medium Density: ≤ 1.8

Vast Fortune provides tailored solutions based on specific operational requirements, ensuring optimal performance and longevity in harsh chemical environments.

Structrue and materials(Impeller diameter<250mm)
NO.NameMaterials
1 Pump shellHT200/F46
2 Static ringSIC
3 Moving ringFilled tetrafluoride
4 ImpellerF46/NdFeB
5 SpindleSIC
6 Shaft sleeveSIC
7 Isolation sleeveF46/PEEK
8 External magnetismHT200/NdFeB
Structrue and materials(Impeller diameter≥250mm)
NO.NameMaterials
1Pump shellHT200/F46
2Static ringSIC
3ImpellerF46/NdFeB
4Back coverHT200/F46
5SpindleSIC
6Shaft sleeveSIC
7Isolation sleeveF46/PEEK
8External magnetismHT200/NdFeB
Corrosion resistance table
Chemical resistance ratings:Chemical resistance ratings:
A Excel lent
B Good
C Fair
X Not recommended
- Date not aval lable
1 20°C
2 40°C
3 60°C
4 80°C
5 100°C
6 120°C
CHEMICALPPPVDFPTFEStainless steelFKMNBR99 CeramicHigh densty carbon
Sul furica Acid0 - 10%A4A6A6B1A6B2A5A6
10 - 75%A3A3A6XA4XA5A6
75 - 100%B2B1A4C1A4-A5A4
Nitric Acid10%A3A3A5A5A5XA5A6
30%A2A3A6A5A6XA5A6
50%B2A3A3A5A1XA5A5
Hydrochloric Acid0 - 25%A4A6A6XA3B1A5A6
15 - 40%A4A6A6XB2XA5A6
Hydrofluoric Acid10%B2A6A6XA3X-A3
30%C2A6A6XA4--A3
60%XA5A6XA4--A2
Acetic Acid20%A2A3A6B5B1B2A5A4
80%B1A3A6B1X-A5A4
Sodium Hydroxide20%A3A3A6B1B1B2-A3
50%A3A3A6B1XB1-A3
Bromine WaterC1A4A3C1A2-A1A2
Ethyl AlcoholA2A6A3B5A3XA3A5
AcetoneA2XA6A5X-A3A5
Freon12XA4A6B5A1XA4A4
Aluminum ChlorideA4A6A6XA5B4A4A5
Ammonia LiquidA1A4A6A5C1B1A3A5
Aqua reriaC2A1A5XB2-A4-
FornaldehydeA4A4A6A4A4XA4A5
GasolineXA6A6A5B3B3A4A6
KeroseneA1A6A6A5A1B1A4A6
Methyl alcoholA3A6A6A5B2B4A5A6
TolueneC1A3A4A5B1-A5A4
TrichloroethyleneC1A6A6B5A1-A4A6
XyleneXA3A6A5B1-A5A5
Nitric acid anhydrousC1A3A3-Al-A5A2
OleumXXA6XA4-A5A2
Potassium hydroxideA4A3A6A1B1C2-A6
Easily damaged parts
NameRemarks
Impeller mouth ring Wear and tear parts are friction parts,good maintenance and maintenance can improve the service life.
Full day boot,suggest 1500 hours of inspe ction,often used,it is recommended to check once a month,long-term downtime,it
is recommended that before the boot check once.
Rotor
Sliding bearing
Isolation sleeve
Static ring
Pump cover
Special performance
Selection item Description
Electrostatic conductivityPrevent static electricity from causing fire or explosion
Dry wear resistanceEnsure that the pump does not burn out after the liquid is cut off.
Insulation sleeveInsulation pump cavity to prevent crystallization damage machine seal
High temperature resistanceSuitable for use between 100 C and 160C
Motor protectorCan cut off the power instantly
Non-standard motorFor special occasions and special requirements
Non-standard flangeYou can customize any standard flange
Simple problem solving
Problem description Cause analysis Solution
Unextractable medium 1.Air in inlet piping
2.Inlet pipe leakage
3.Liquid shortage in pump cavity
4.Foreign body in inlet pipe
5.Pumpequipment steering marking is incon
-sistent
6.The suction height is too high		 1.Recharge/exhaust
2.Is the inlet pipe damaged
3.Increased injection of liquid
4.Check the pipeline for foreign bodies
5.Adjusting the steering of pump equipment
6.Lower installation height
Flow,head insufficiency 1.There is foreign body in the pipeline
2.Motor speed insufficiency
3.Impeller damage		 1.Clean up foreign bodies
2.Check motor and circuit
3.Replacement of impeller
Excessive power 1.Medium density is too large
2.The error between pump axis and motor
axis is large
3.Mechanical friction		 1.Reducing the specific gravity of medium
2.Adjust axis position
3.Carry out overhaul
Pump equipment vibration 1.Big error between pump axis and motor axis
2.High suction,cavitation
3.Mechanical friction		 1.Adjust axis position
2.Lower installation height
3.Inspection of wear and tear
NO.TypeLSPAfWThHabegijn-Øtn-Ød
1 VMF32-20-125F495 183 50 55 80 190 150 120 260 140 100 18 105 75 18 4-M164-M12
2 VMF32-20-160F570 181 50 55 80 190 150 120 260 140 100 18 105 75 18 4-M164-M12
3 VMF50-32-125F570 183 50 55 80 190 150 120 260 165 125 20 140 100 18 4-Ø184-Ø18
4 VMF50-32-160F525 217 70 53 88 240 195 160 320 165 125 20 140 100 18 4-Ø184-M16
5 VMF65-50-125F620 188 50 55 80 195 150 132 275 185 145 20 165 125 20 4-Ø184-M16
6 VMF65-50-130F670 214 70 55 80 240 195 160 320 185 145 20 165 125 20 4-Ø184-Ø18
NO.TypeLBSPAfQYTWhHabegijn-Øtn-Ød
1 VMF65-50-160F710 555 385 70 93 88 290 320 325 355 210 370 185 145 20 165 125 20 4-Ø184-Ø18
2 VMF80-65-125F720 555 385 70 105 100 290 320 325 355 182 342 200 160 22 185 145 20 8-Ø184-M16
3 VMF50-32-200F705 555 385 70 85 80 290 320 325 355 210 390 165 125 20 140 100 18 4-Ø184-M16
NO.TypeLBSPAfTWhHabegijn-Øtn-od
1 VMF50-32-250F902 760 530 115 140 100 365 405 240 440 165 125 20 140 100 18 4-0184-M16
2 VMF65-40-200F885 760 530 115 130 100 365 405 220 400 185 145 20 150 110 18 4-0184-M16
3 VMF80-65-160F920 760 530 115 155 100 365 405 220 400 200 160 22 185 145 20 8-0184-018
4 VMF65-40-250F975 760 530 115 150 102 365 405 240 465 185 145 20 150 110 18 4-0184-M16
5 VMF80-50-250F1095 900 580 160 213 125 450 500 280 505 200 160 22 165 125 20 8-0184-M16
6 VMF100-80-125F890 760 530 115 140 100 365 405 220 400 220 180 24 200 160 22 8-M168-M16
7 VMF100-80-160F980 900 580 160 188 100 450 500 280 500 220 180 24 200 160 22 8-0188-M16
8 VMF100-80-180F1150 900 580 160 213 125 450 500 350 600 220 180 24 200 160 22 8-0188-M16
10 VMF125-100-160F1120 1065 865 100 150 125 461 521 350 600 250 210 27 220 180 24 8-0188-M16
11 VMF125-100-180F1120 1065 865 100 150 125 462 522 350 600 250 210 27 220 180 24 8-0188-M16
12 VMF125-100-200F1155 1065 865 100 150 125 463 523 350 600 250 210 27 220 180 24 8-0188-M16
Performance data
Type FlowHeadEFFNPSHrApertureSpeedPower
Typem³/hm%mmmr/minkW
VMF32-20-125F3.6 20 18 3 32×2050HZ2900 1.1
4.5 30 60HZ3600 1.5
VMF32-20-160F3.6 32 20 3 32×2050HZ2900 2.2
4.5 48 60HZ3600 5.5
VMF40-25-125F6.3 20 28 3 40×2550HZ2900 1.5
7.8 30 60HZ3600 2.2
VMF40-25-160F6.3 32 26 3 40×2550HZ2900 3
7.8 48 60HZ3600 4
VMF40-25-200F6.3 50 30 3 40×2550HZ2900 5.5
7.8 75 60HZ3600 7.5
VMF40-25-250F6.3 80 35 3 40×3250HZ2900 11
7.8 80 60HZ3600 11
VMF50-32-125F12.5 20 56 3.2 50×3250HZ2900 1.5
15.5 30 60HZ3600 3
VMF50-32-160F12.5 32 46 3.2 50×3250HZ2900 4
15.5 48 60HZ3600 5.5
VMF50-32-200F12.5 50 43 3.2 50×3250HZ2900 7.5
15.5 75 60HZ3600 11
VMF50-32-250F12.5 80 36 3.2 50×3250HZ2900 11
15.5 80 60HZ3600 11
VMF65-50-125F25 20 55 3.5 65×5050HZ2900 3
31 30 60HZ3600 5.5
VMF65-50-130F18 25 57 3.5 65×5050HZ2900 4
22.9 38 60HZ3600 5.5
VMF65-50-160F25 32 52 3.5 65×5050HZ2900 5.5-7.5
31 48 60HZ3600 11
VMF65-40-200F25 50 46 3.5 65×4050HZ2900 11
31 75 60HZ3600 15
VMF65-40-250F25 80 47 3.5 65×4050HZ2900 18.5
31 80 60HZ3600 18.5
VMF80-65-125F50 20 45 4.5 80×6550HZ2900 5.5
62 30 60HZ3600 11
VMF80-65-160F50 32 48 4.5 80×6550HZ2900 11
62 48 60HZ3600 18.5
VMF80-50-200F50 50 56 4.5 80×5050HZ2900 15
62 75 60HZ3600 30
VMF80-50-250F50 80 53 4.5 80×5050HZ2900 30
62 100 60HZ3600 30
VMF100-80-125F100 20 54 5 100×8050HZ2900 15
124 30 60HZ3600 18.5
VMF100-80-160F100 32 56 5 100×8050HZ2900 18.5
124 48 60HZ3600 30
VMF100-80-180F100 40 51 5 100×8050HZ2900 30
124 60 60HZ3600 37
VMF125-100-160F190 30 45 5.5 125×10050HZ2900 37
236 45 60HZ3600 55
VMF125-100-180F200 40 57 5.5 125×10050HZ2900 45
248 60 60HZ3600 75
VMF125-100-200F200 50 60 5.5 125×100 50HZ
60HZ		2900 55
248 75 3600 90
